Membrane water treatment

We manufacture and supply Hi-tech technology in drinking water treatment - the membrane water treatment plant AMAYA. The AMAYA system is a reliable barrier for removing solid microparticles, turbidity and microorganisms from raw water.

The course of filtration and washing

AMAYA

The whole AMAYA system works on the principle of direct filtration (dead end filtration). It is a ceramic membrane filtration with a pre-coagulation stage. When the membrane is clogged, a physical wash called backwash is automatically started, which is combined with a chemical wash.

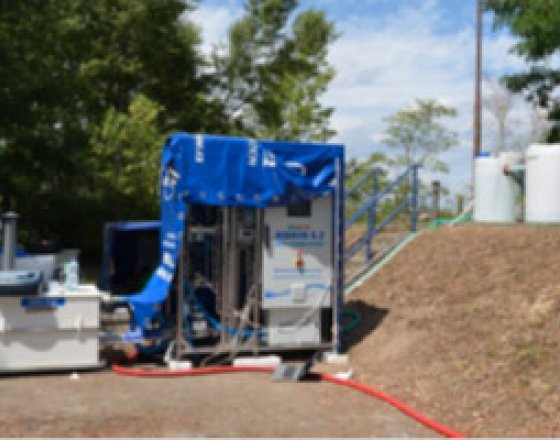

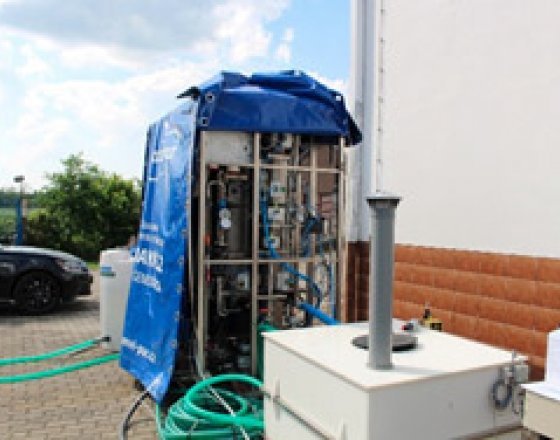

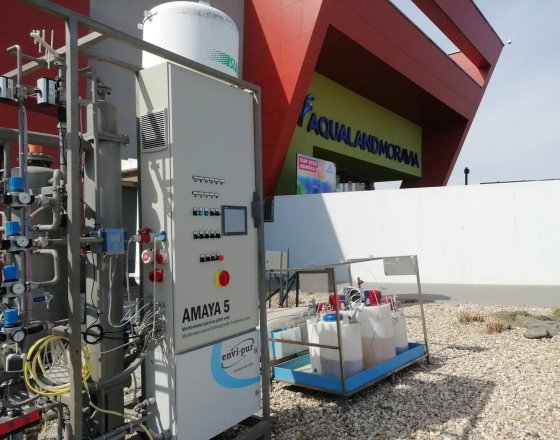

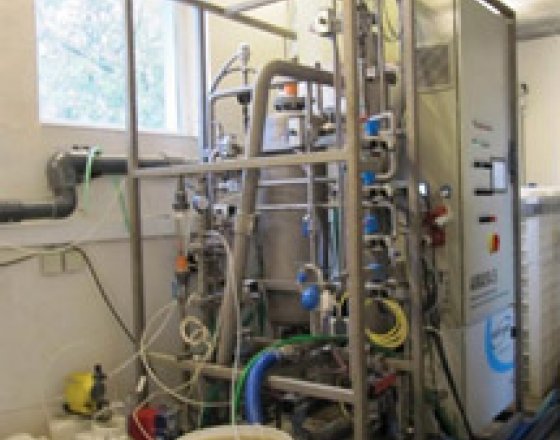

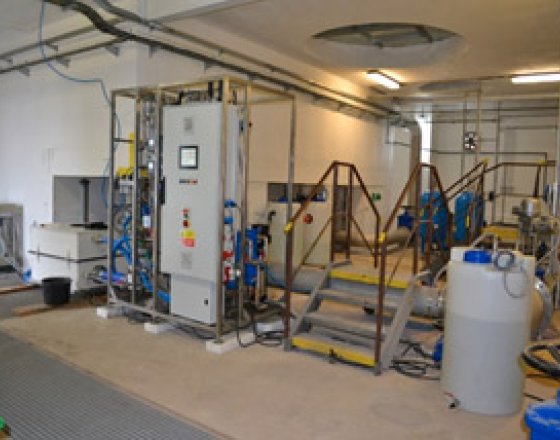

Success stories

The course of project preparation and implementation

We find out your needs and options

We will come to have a look at the place of installation

We prepare suggestion for water recycling solution

Consultancy and proposition from ENVI-PUR

We project pilot testing

We help you with the project documentation

We supply you with suitable technology for water recycling

Possibilities of use

Advantages of the AMAYA membrane treatment plant

High efficiency in removing organic substances, paint, turbidity, microorganisms and viruses.
Low consumption of washing water (0.5-1%) and electricity 0.1 kWh / m³.
It automatically responds to changes in raw water quality.
Suitable for surface and underground water sources.
Easy shutdown and re-commissioning without the need to preserve the membrane.
Effective pre-treatment for reverse osmosis and nanofiltration.
Long service life of the equipment.
Possible integration of sorption stage.
Compact and robust device.

Ceramic membrane element

Membrane surface ≈ 25 m2

Pore size ≈ 0.1 μm

Channel diameter ≈ 2.5 mm

Number of channels ≈ 2000

Direct filtration (dead end filtration)

Membrane treatment plant AMAYA

It is suitable for underground and surface sources of raw water.

The capacity of the device can be increased by adding individual ceramic modules.

According to the customer's request, the AMAYA device can be delivered as a mobile system or stationary system.

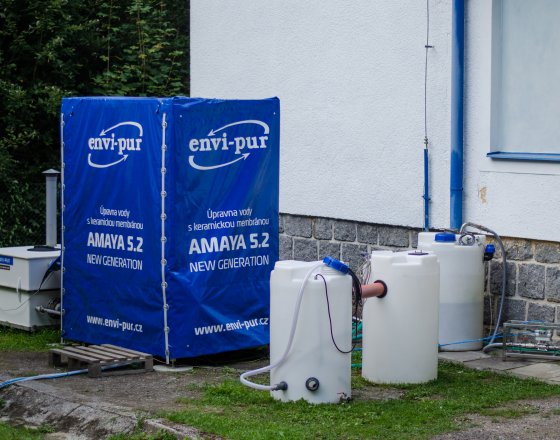

Mobile treatment plant AMAYA

It is placed in a marine ISO container. The container is equipped with all the necessary equipment from housing with a ceramic element, storage tanks, chemical dosing, air compressor to the control system. Use suitable for:

Emergency drinking water supply in crisis situations as a part of ISZ
Accelerated drinking water supply as part of humanitarian, development and military operations
Temporary or permanent replacement of smaller stationary water treatment plants
Ensuring the supply of drinking water for sporting and cultural events
